[javascript30]CSS + JS Clock

소영 2021. 7. 5. 21:02
javascript css+js Clock 설명

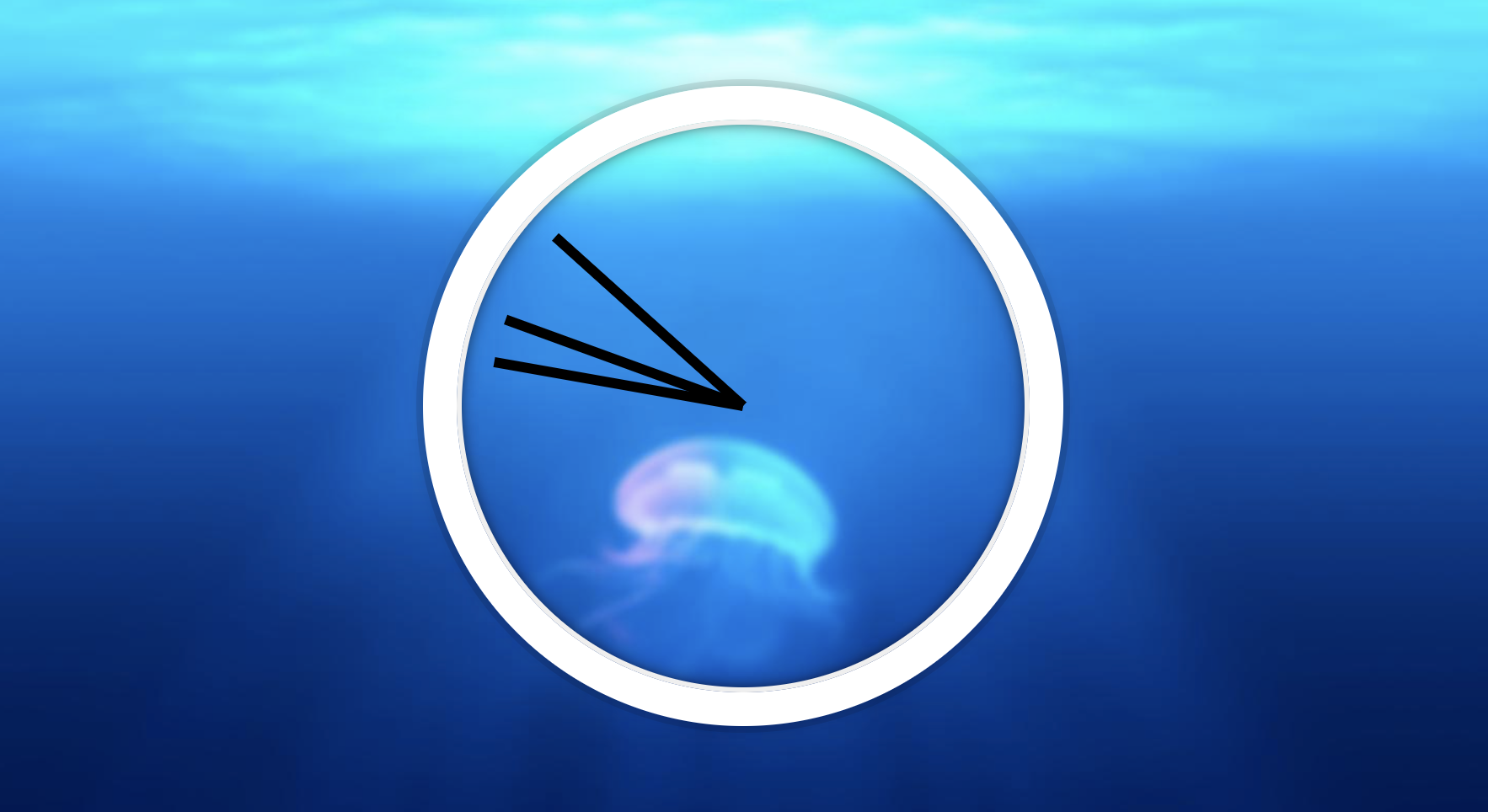

css에서 transform 과 javascript setInterval로 아날로그 시계를 만들면된다.



1.transform 으로 중심을 고정시키고 시,분,초만 각도를 조절할 수 있게 하기

2.setInterval로 시계 자동으로 움직이게 하기

3. new Date를 이용해 현재 시간을 불러와, 각도에 맞춰 계산하여 transform에 넣기



코드
<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>JS + CSS Clock</title>
</head>
<body>


    <div class="clock">
      <div class="clock-face">
        <div class="hand hour-hand"></div>
        <div class="hand min-hand"></div>
        <div class="hand second-hand"></div>
      </div>
    </div>


  <style>
    html {
      background: #018DED url(https://unsplash.it/1500/1000?image=881&blur=5);
      background-size: cover;
      font-family: 'helvetica neue';
      text-align: center;
      font-size: 10px;
    }

    body {
      margin: 0;
      font-size: 2rem;
      display: flex;
      flex: 1;
      min-height: 100vh;
      align-items: center;
    }

    .clock {
      width: 30rem;
      height: 30rem;
      border: 20px solid white;
      border-radius: 50%;
      margin: 50px auto;
      position: relative;
      padding: 2rem;
      box-shadow:
        0 0 0 4px rgba(0,0,0,0.1),
        inset 0 0 0 3px #EFEFEF,
        inset 0 0 10px black,
        0 0 10px rgba(0,0,0,0.2);
    }

    .clock-face {
      position: relative;
      width: 100%;
      height: 100%;
      transform: translateY(-3px); /* account for the height of the clock hands */
    }

    .hand {
      width: 50%;
      height: 6px;
      background: black;
      position: absolute;
      top: 50%;
      transform-origin: 100%;
      transform: rotate(90deg);
      transition: all 0.05s;
      transition-timing-function: cubic-bezier(0.1, 2.7, 0.58, 1);
    }
</style>

<script>
  const secondHand = document.querySelector('.second-hand');
  const minsHand = document.querySelector('.min-hand');
  const hourHand = document.querySelector('.hour-hand');

  function setDate() {
    const now = new Date();

    const seconds = now.getSeconds();
    //현재 초을 전체 초(60)를 나누고 전체 각도(360)를 곱한다(90도를 더해주는 것은 처음 -90도로 시작되기 때문)
    const secondsDegrees = ((seconds / 60) * 360) + 90;
    secondHand.style.transform = `rotate(${secondsDegrees}deg)`;

    const mins = now.getMinutes();
    const minsDegrees = ((mins / 60) * 360) + ((seconds/60)*6) + 90;
    minsHand.style.transform = `rotate(${minsDegrees}deg)`;

    const hour = now.getHours();
    const hourDegrees = ((hour / 12) * 360) + ((mins/60)*30) + 90;
    hourHand.style.transform = `rotate(${hourDegrees}deg)`;
  }

  setInterval(setDate, 1000);

  setDate();

</script>
</body>
</html>

음 근데 왜 강의 코드랑 github에 올라가 있는 코드가 좀 많이 다른지 잘 모르겠다 특히 계산부분 ;;;;;



알게 된 문법

CSS



transform-origin

transform 속성과 함께 사용되며 회전 축(중심)을 지정한다.



속성 값

left 0%
center 50%
right 100%
top 0%
bottom 100%



transition-timing-function

 가속 곡선을 설정하여 전환 속도가 지속 시간에 따라 달라질 수 있도록 한다.(MDN 참조)

(시계가 틱틱하고 움직이게 하기위해 속도를 느렸다가 빠르게? 하려고 사용한 css)



JAVASCRIPT

new Date()

현재 시간을 반환한다.



new Date와 쓰이는 메서드

getDate() 현지 시간 기준 일(1-31)일(하루)
getDay() 현지 시간 기준 요일(0-6)
getFullYear() 현지 시간 기준 연도(네 자리 연도면 네자리로)
getHours() 현지 시간 기준 시(0-23)
getMinutes() 현지 시간 기준 분(0-999)
getMonth() 현지 시간 기준 월(0-11)
getSeconds() 현지 시간 기준 초(0-59)

여기까지는 이해는 되는데

const minsDegrees = ((mins / 60) * 360) + ((seconds/60)*6) + 90;

const hourDegrees = ((hour / 12) * 360) + ((mins/60)*30) + 90;

시와 분을 왜 이렇게 나누는지 잘 모르겠다





알려주실 분 찾아요......
